ANRITSU | Mobile Wireless Communications Measuring Instruments

Universal Wireless Test Set MT8870A

Now includes NABL Calibration Certificate.

The MT8870A Universal Wireless Test Set supports 5G NR Sub-6 GHz, LTE, WLAN, Bluetooth, and more, enabling high-speed testing for mass production lines of smartphones, automotive, IoT devices, and communication modules..

  • Detail
  • Special Features
  • Specification

The MT8870A Universal Wireless Test Set is an all-in-one testing solution designed for mass-production lines in industries such as smartphones, automotive, and IoT communications. It supports a range of wireless standards, including 5G NR, LTE, WLAN 802.11ax, Bluetooth, and more. The modular design allows up to four test modules to be installed in a single chassis, with each unit capable of independent control. This configuration is particularly beneficial for high-speed parallel testing, making it ideal for modern wireless communication systems with multiple antennas.

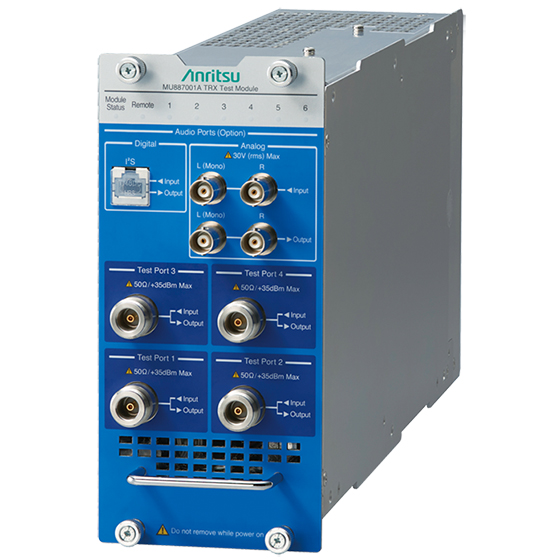

Each test module is equipped with built-in vector signal generators and vector signal analyzers for comprehensive TX and RX testing. The MT8870A supports simultaneous testing of up to four devices, with 12 antennas connected in total, making it suitable for testing devices with complex antenna configurations. The MU887002A unit provides the highest bandwidth (200 MHz), enabling testing for 5G NR Sub-6 GHz and WLAN 802.11ax standards.

  • Multiple Test Modules: Supports up to four test modules in a single chassis for simultaneous testing.

  • Test Types: Tests TX power, transmission modulation accuracy, RX sensitivity, and more.

  • Antennas: Each test unit supports connection of up to 12 device antennas, enabling simultaneous measurement of up to 4 devices.

  • Bandwidth: 160 MHz bandwidth for MU887000A/MU887001A, and 200 MHz for MU887002A to support 5G and WLAN testing.

  • Wireless Standards: Covers 5G NR, LTE, WLAN, Bluetooth, V2X, and more.

  • Modular Design: Each unit works independently but shares the same power supply and chassis, helping to reduce costs.

  • Integrated Audio Analyzer/Generator: Built-in audio functionality for analog and digital audio testing.

  • Frequency Range: 5G NR Sub-6 GHz, LTE/LTE-Advanced, WLAN, Bluetooth, and other wireless standards

  • Bandwidth: 160 MHz for MU887000A/MU887001A, 200 MHz for MU887002A

  • Simultaneous Measurement: Supports up to 4 devices with direct connection of 12 antennas

  • Supported Standards: 5G NR, LTE, WLAN, Bluetooth, V2X, NB-IoT, Cat-M, WCDMA, TD-SCDMA, GSM/EDGE, CDMA2000, ZigBee, Z-Wave, GPS/Galileo/GLONASS, ISDB-T, and more

  • Integrated Audio Test: Built-in Audio Analyzer and Audio Generator

  • Test Capabilities: TX Power, Modulation Accuracy, RX Sensitivity, and more

  • Size: Compact, designed for use in high-volume production environments
